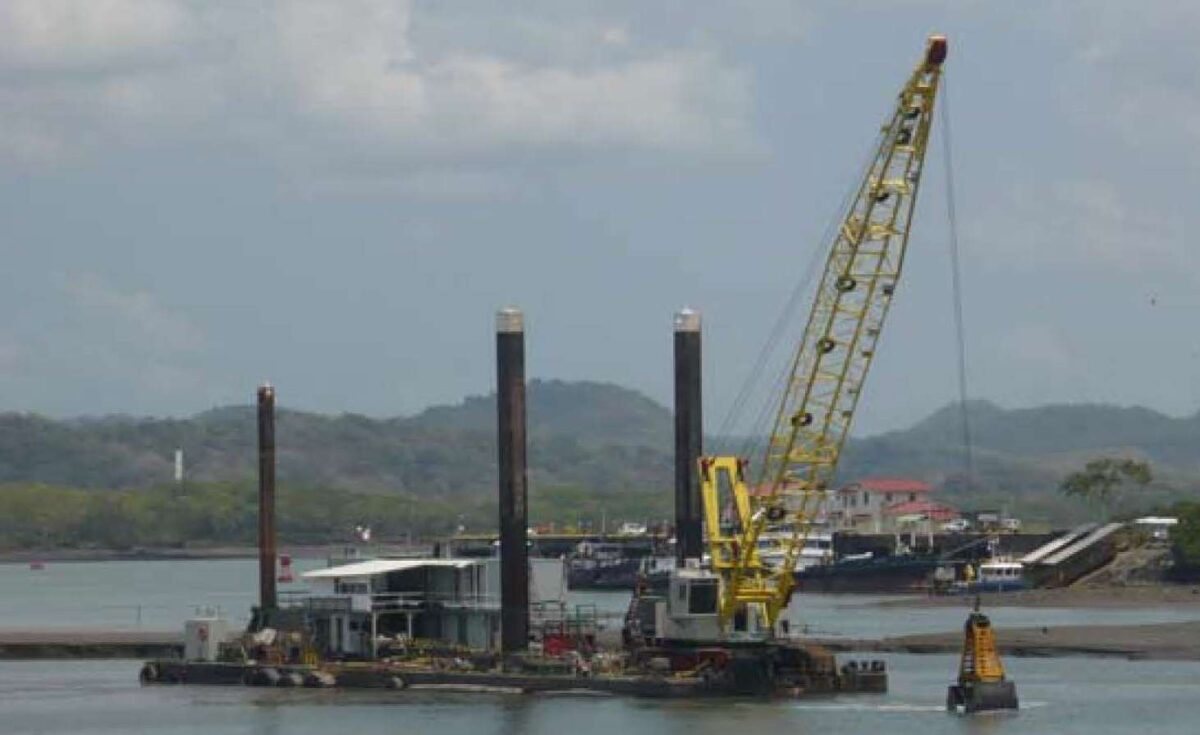

Clamshell Dredger
Clamshell dredger suitable for dredging operations in free fall, dragline and suitable for lifting operations for up to 25 tons. Due to the barge equipped with wire spuds, hopper barges can come alongside without interfering with the mooring arrangement. Location: Central America. Enquire
| General | |
| Built | 2001 |
| Class | BV, I ✠ Hull, Pontoon |
| Unrestricted navigation | |
| Dimensions | |
| Length | 50 m |
| Beam | 14 m |
| Depth | 3.0 m |
| Draft (operational) | 1.9 m |
| GT | 550 |
| Dredging particulars | |
| Crane | Manitowoc 4600 on tracks |
| Engine | Cat 3508, 465 kW |
| Bucket capacity | 5.0 m3 – 8.0 m3 |
| Operating modes | Clamshell, Dragline, Lift |
| Dredging depth | 20 m max (on spuds) |
| 38 m max (wire spuds/anchors) | |
| Deck equipment | |
| Spuds | 3 x |
| Mooring winches | 3 x |
| Wire spuds | 3 x |
| Anchors | 3 x |
| Other | Office, galley, mess |
