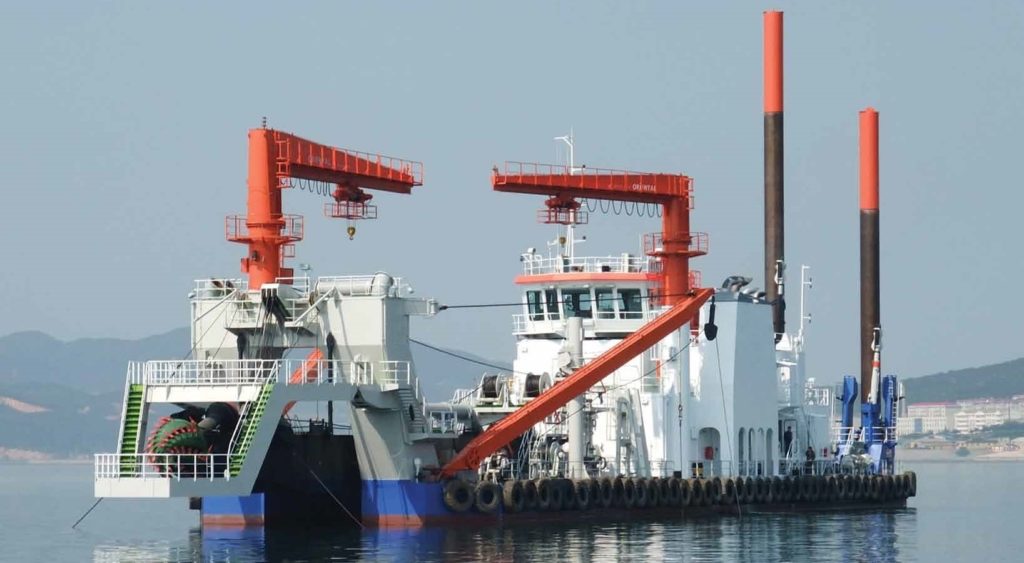

850mm (34″) Cutter Suction Dredger
2009, IACS class, IHC design Cutter Suction Dredger. Suction dia: 34″ (850mm), Max dredging depth: 27 m, Length over all: 116 m. Total installed power: 13,650 kW, 2,000 kW underwaterpump , 2 x 3,700 kW inboard double walled pumps, 1,100 kW cutter drive, Anchor booms, Spud carrier, Cutter platform, 21 men accommodation. Enquire
| General | |
| Built / Design | 2009 / IHC |
| Class | CSS, ★ CSA Cutter suction dredger |
| dredging within 20 nautical miles from shore | |
| Dimensions | |
| Length | 116 m |
| Length hull | 85 m |
| Beam | 18.2 m |
| Depth | 5.2 m |
| Draft | 3.5 m |
| GRT | 2675 |
| Performance | |
| Pump capacity | 4500 m3/h |
| Dredging depth | 27 m |
| Machinery | |
| Inboard pump engine | 2 x Caterpillar C280-12, 3700 kW each |
| Dredging generator engine | 3 x Caterpillar 3516B , 1715 kW |
| Hydraulic pump engine | |
| Net generator | 1 x Cummins KTA 38-D(M), 560 kW |
| Alternator | 400 V, 50 Hz, 500 kW |
| Harbor generator | 1 x Cummins KTA 38-D(M), 560 kW |
| Alternator | 400 V, 50 Hz, 500 kW |
| Dredging / Deck equipment | |
| Suction / delivery diameter | 850 mm |
| Submerged pump | 1 x 2000 kW, single wall |
| Inboard pump | 2 x 3700 kW, double walled |
| Cutter head / Drive | IHC, 2.33 m / 1100 kW |
| Spud | 2 x 44 m x 1.6 m, Weight 72 t each |
| Spud tilt system | Yes |
| Anchor booms | Yes |
| Cutter platform | Yes |
| Deck cranes | 1 x 13 t, 1 x 11 t, 1 x 3.5 t |
| Tank capacities | |
| Fuel | 635 m3 |
| Fresh water | 115 m3 |
| Hydraulic oil | 11.5 m3 |
| Accommodation | |
| Cabins | 3 x 1-berth, 5 x 2-berth, 2 x 4-berth |
| Complement | 21 crew |
