400 mm (16″) Cutter Suction Dredger

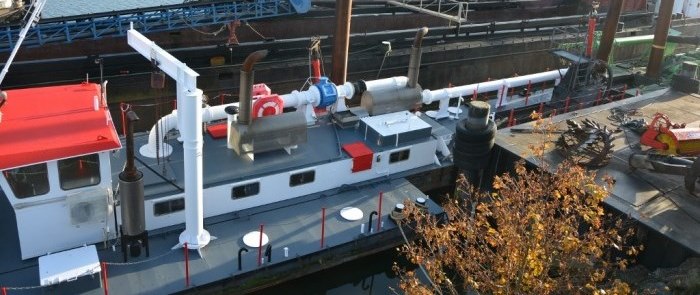

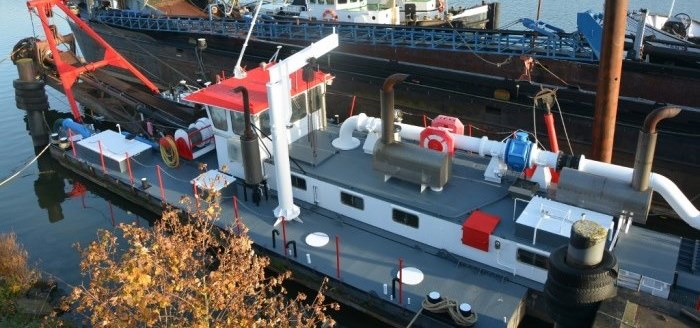

Fully refurbished De Groot Nijkerk (Damen) 400 mm (16″) Cutter Suction Dredger. Location: The Netherlands. Enquire
| General | |
| Type | DGN CSD 400 demountable |
| Built (rebuilt) | 1985 (2009) |
| Dimensions | |
| Length over all | 26.5 m (excl. spud carrier) |
| Length pontoon | 16.5 m |
| Beam | 6.0 m |
| Depth | 1.5 m |
| Draft | 0.8 m |
| Dredging particulars | |
| Suction line | 400 mm |
| Discharge line | 400 mm |
| Dredge pump | 350/350 |
| Dredging depth | 10 m |
| Spud carrier | Yes (2009) |
| Anchor booms | No |
| Jet pump | Yes |
| Machinery | |
| Pump engine | 1 x Cummins, 300 kW |
| Power pack engine | 1 x Cummins, 300 kW |
| Jet pump engine | 1 x 90 kW |
| Generator | 1 x 20 kW |
| Deck equipment | |
| Ladder winch | 5 t, 0-15 m/min |
| Side winches | 2 x 10 t, 0-15 m/min |
| Spuds | 2 x 12.5 m |
| Spud carrier stroke | 3.5 m |
| Tank Capacity | |
| Fuel | 2 x 7 m3 |
