Deck Cargo -, Semi-submersible -, Accommodation / Work -, Crane Barges, Spud-pontoons, Jack-ups and other types of barges for Sale and/or Charter

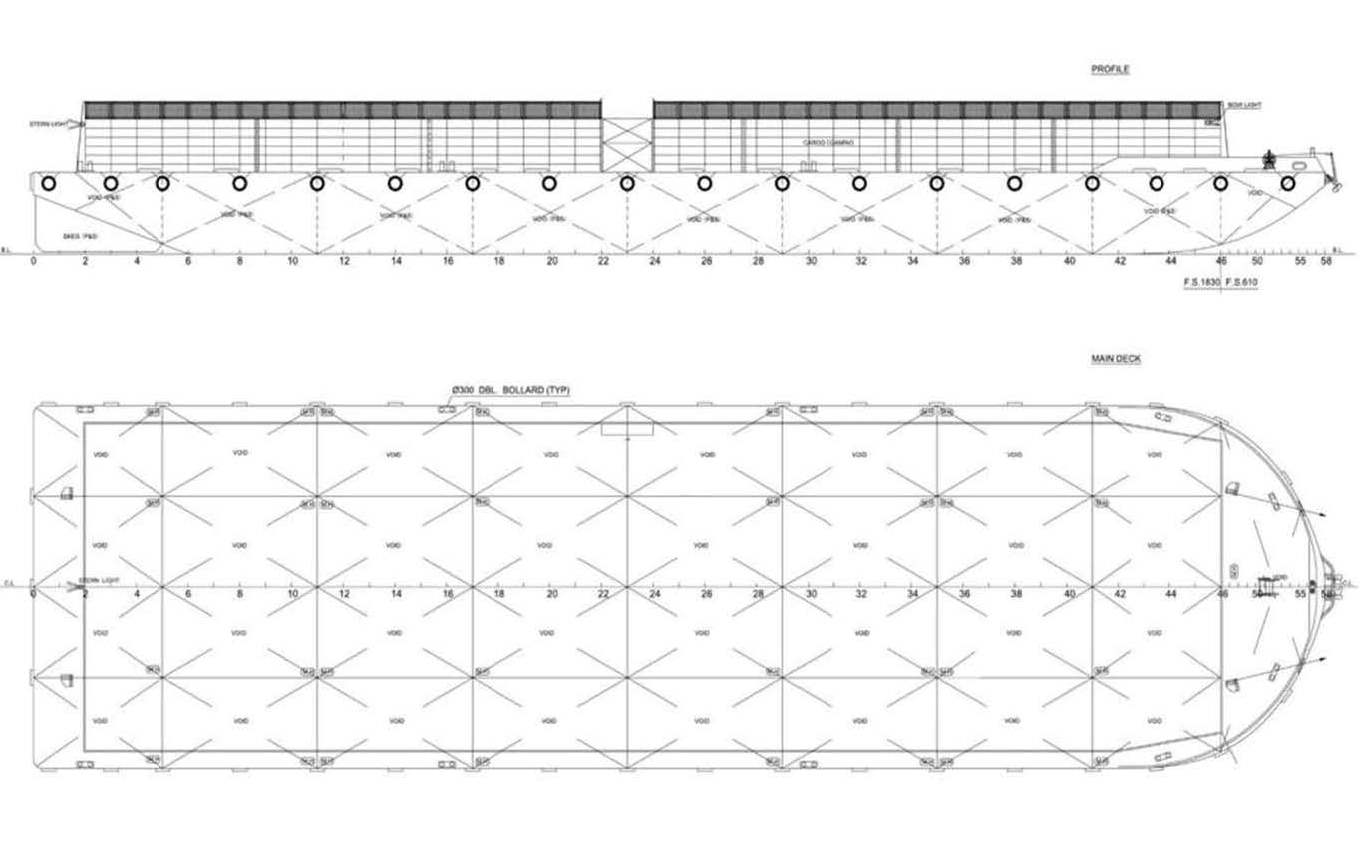

Deck Cargo Barge
365 ft Deck Cargo Barge
2009, built in China, ABS class, unrestricted navigation, l x b x d(m): 111.25 x 28.00 x 6.95, Deadweight: approx. 12,000 tons, deckstrength: 15 tons/m2. 3.60 m high coaming all around, including standard accessories. ME. Price: Inquire
| GENERAL | |
| Year Built | 2009 |
| Where Built | Nanjing, China |
| Classification | ABS |
| Navigational Area | Unrestricted |
| DIMENSIONS | |
| Length Overall | 111.25 m / 365 ft |
| Breadth (moulded) | 28.04 m / 92 ft |
| Depth (moulded) | 6.93 m / 22 ft |
| Max Draft | 5.42 m |
| GRT / NT | 5,289 / 1,586 |
| Deadweight | Approx. 12,040 ton |
| Lightship Weight | Approx. 2,330 ton |
| Displacement | Approx. 14,370 ton |
| Deck Strength | 15 ton/m2 |
| FEATURES | |
| Deck’s Fitting | 1 x Winch house inclusive 1 x 10 ton Anchor Winch |
| 1 x 2,850kg Stockless Bow Anchor | |
| 2 x Smit Towing Bracket | |
| Eighteen (18) Single Post Mooring Bollards of 12’ | |
| Sufficient 15kg Alum. Anode for two (2) years Protection | |
| Three (3) Navigation Light Stand with Battery Box | |
| Rubber Tyre Fenders, | |
| Coaming | 12ft High All Around |
345 ft Deck Cargo Barge
2008, built in China, BV class, unrestricted navigation, l x b x d(m): 105 x 27.50 x 6.40, Deadweight: approx. 10,000 tons, deckstrength: 15 tons/m2. 3.60 m high coaming all around, including standard accessories. ME. Price: Inquire
| GENERAL | |
| Year Built | 2008 |
| Where Built | Nanjing, China |
| Class | Bureau Veritas, BV |
| Navigational Area | Unrestricted |
| DIMENSIONS | |
| Length Overall | 105.16 m / 345 ft |
| Breadth (moulded) | 27.43 m / 90 ft |
| Depth (moulded) | 6.40 m / 21 ft |
| Max Draft | 5.02m |
| GRT / NT | 4,361 / 1,308 |
| Deadweight | Approx. 10,165 ton |
| Lightship Weight | Approx. 1,780 ton |
| Displacement | Approx. 11,945 ton |
| Deck Strength | 15 ton/m2 |
| FEATURES | |
| Deck’s Fitting | 1 Winch house inclusive 1 x 10 ton Anchor Winch |
| 1 x 2,900kg Stockless Bow Anchor | |
| 2 x Smit Towing Bracket | |
| Sixteen (16) Twin Mooring Bollards at Main Deck | |
| Sufficient 15kg Alum. Anode for two (2) years Protection | |
| Three (3) Navigation Light Stand with Battery Box | |
| Sufficient Rubber Tyre Fenders for Barge Protection | |
| Coaming | 12ft High All Around |
200 ft Deck Cargo Barges (2 sisters)
2013, built in the Netherlands, BV class, unrestricted navigation, l x b x d(m): 60.00 x 13.50 x 3.50, Deadweight: approx. 2,000 tons, deckstrength: 15 tons/m2. 1.60 m high coaming at the sides and forward, including standard accessories, coated inside, concrete deck protection. Black Sea area. Price: Offers invited
Please contact us for details
300 ft Deck Barges (2 sisters)
2007/2008, ABS class, unrestricted navigation. Deadweight 8,000 tons approx. WAF. Price: Inquire
| Year | 2007/2008 |
| Class | ABS / A1 Barge |
| GT / NT | 3,527 / 1,058 |
| Length oa | 300 feet (91.44 meters) |
| Width | 90 feet (27.43 meters) |
| Depth | 18 feet (5.48 meters) |
| Draft max. | 14.07 feet (4.29 meters) Approximate |
| Lightweight | Approx.1,300 Metric Tons |
| Deadweight | Approx. 8,154 Metric Tons |
| Deck Load | 15 mt/m2 |
300ft Heavy Lift Barge (3 sisters)
2011/2012, ABS class, unrestricted navigation. Deadweight abt. 8,400 t. SE Asia. For Charter only: Inquire
| General | |
| Type | Deck Cargo and Ballast Tank Barge |
| Built | 2011/2012 |
| Class | ABS, + A1 Barge |
| Dimensions | |
| Length Overall | 91.50m (300 feet) |
| Breadth Moulded | 30.48m (100 feet) |
| Depth Moulded | 5.50m (18 feet) |
| GT | 3955 |
| Deadweight | 8,435 tonne |
| Deck Loading | 25 t/m2 |
| Deck Equipment | |
| Mooring Bollards | 6 x double bitts 10” N.B. bollards each side (recessed type) |
| Towing Brackets | 2 sets “SMIT” 80T SWL – fitted forward & aft |
| Winches | 2 x 5 tons hand winch – 1 unit for retrieving |
| anchor & 1 unit for retrieving main tow gear | |
| Anchor | 1 x 2,100kg Stockless Bower Anchor |
| Fender | 3 rows steel fenders with 7 sets of wooden |
| padded fenders fitted on each sides | |
| Manhole | 1 x flushed manhole for each tank – «T» bar |
| /single bolt locking type 500mm diameter | |
| Navigation Lights | One set navigation lights |
| Pilot Ladders | Flush (pigeon holes) type installed each side |
| Others | Barge is all welded steel construction with flush |
| main deck, fitted with twin skegs stern. | |
| Transverse Bulkhead | Eight (8) transverse bulkheads (watertight) |
| Longitudinal Bulkhead | Three (3) longitudinal bulkheads (watertight) |
| No. of compartments | Thirty-two (36) compartments |
400ft Heavy Lift Barge (2 sisters)
2011/2012, ABS class, unrestricted navigation. Deadweight abt. 18,850 t. SE Asia. For Charter only: Inquire
| General | |
| Type | Deck Cargo and Ballast Tank Barge |
| Built | 2011/2012 |
| Class | ABS, + A1 Barge |
| Dimensions | |
| Length Overall | 91.50m (300 feet) |
| Breadth Moulded | 30.48m (100 feet) |
| Depth Moulded | 5.50m (18 feet) |
| GT | 3955 |
| Deadweight | 8,435 tonne |
| Deck Loading | 25 t/m2 |
| Deck Equipment | |
| Mooring Bollards | 6 x double bitts 10” N.B. bollards each side (recessed type) |
| Towing Brackets | 2 sets “SMIT” 80T SWL – fitted forward & aft |
| Winches | 2 x 5 tons hand winch – 1 unit for retrieving |
| anchor & 1 unit for retrieving main tow gear | |
| Anchor | 1 x 2,100kg Stockless Bower Anchor |
| Fender | 3 rows steel fenders with 7 sets of wooden |
| padded fenders fitted on each sides | |
| Manhole | 1 x flushed manhole for each tank – «T» bar |
| /single bolt locking type 500mm diameter | |
| Navigation Lights | One set navigation lights |
| Pilot Ladders | Flush (pigeon holes) type installed each side |
| Others | Barge is all welded steel construction with flush |
| main deck, fitted with twin skegs stern. | |
| Transverse Bulkhead | Eight (8) transverse bulkheads (watertight) |
| Longitudinal Bulkhead | Three (3) longitudinal bulkheads (watertight) |
| No. of compartments | Thirty-two (36) compartments |
250 ft Deck Cargo Barges (3 sisters)
1998, ABS class, unrestricted navigation. Deadweight 4,900 tons approx. Gulf of Mexico. Price: Inquire
| Type | : Deck Barge | |
| Year Built | : 1998 | |
| Class/Classification | : ABS/ A1 | |
| GRT / NRT | : 2,115 / 634 | |
| Length Overall | : 250.0 ft | : 76.2 m |
| Breadth | : 72.0 ft | : 21.95 m |
| Depth | : 16 ft | : 4.88 m |
| Draft max | : 12.75 ft | : 3.88 m |
| Light Ship Weight | : 937.5 LT Approx. | : 952 Metric Tons |
| Cargo Capacity at Max Load Line | : 4910 LT Approx. | : 4989 Metric Tons |
| Deck Loading | : 3000 lbs/ft2 | : 15 metric tons/m2 |
| Transverse Bulkhead | : 6 | |
| Longitudinal Bulkhead | : 3 | |
| No. of Compartments | : 28 |
Spud Pontoon / Work Barge
Spud pontoon
Spud pontoon, with accommodation and three winch operated spuds of which one so-called walking spud. Pontoon can lift itself about 80 cm up to create a stable work platform. Ideal for shallow water offshore operations. An approx 150 ton latticeboom crane, excavator or drilling equipment can be placed on board. For sale. Inquire
Pontoons, various sizes and load capabilities
Range: 500 to 5,000 tons DWT. See listing in detailed description. Location: North Sea area. For charter and some for sale. Inquire
| Dimensions | Lightweight | Deadweight | Deck capacity | Spudwell | other remarks |
| (m) | (ton) | (ton) | (ton/m2) | ||
| 33,7 x 7,8 x 2,0 | 105 | 265 | 4 | Connectable with sister | |
| 33,7 x 7,8 x 2,0 | 105 | 265 | 4 | Connectable with sister | |
| 33,7 x 7,8 x 2,0 | 105 | 265 | 4 | Connectable with sister | |
| 30,0 x 11,2 x 2,5 | 162 | 500 | 6 | 2 x ø609 mm | |
| 30,0 x 11,2 x 2,5 | 162 | 500 | 6 | 2 x ø609 mm | |
| 40,0 x 12,5 x 3,0 | 222 | 850 | 6 | 2 x ø609 mm | |
| 40,0 x 12,5 x 3,0 | 222 | 850 | 6 | 2 x ø609 mm | |
| 50,0 x 12,0 x 2,8 | 328 | 850 | 10 | 2 x ø609 mm | |
| 50,0 x 14,0 x 3,0 | 300 | 1.300 | 10 | 2 x ø609 mm + 2 x ø914 mm | |
| 50,0 x 14,0 x 3,0 | 300 | 1.300 | 6 | 2 x ø609 mm | |
| 50,0 x 14,0 x 3,0 | 300 | 1.300 | 6 | 2 x ø609 mm | |
| 50,0 x 14,0 x 3,0 | 300 | 1.300 | 6 | 2 x ø609 mm + 2 x ø914 mm | |
| 50,0 x 18,8 x 3,0 | 375 | 1.800 | 6 | 2 x ø609 mm | |
| 50,0 x 18,8 x 3,0 | 375 | 1.800 | 6 | 2 x ø609 mm | |
| 50,0 x 20,0 x 3,0 | 400 | 1.900 | 6 | 2 x ø609 mm | |
| 50,0 x 20,0 x 3,0 | 400 | 1.900 | 6 | 2 x ø609 mm | |
| 60,0 x 16,5 x 3,5 | 475 | 2.100 | 11 | 2 x ø914 mm | |
| 60,0 x 20,0 x 4,0 | 560 | 3.050 | 10 | 2 x ø914 mm | |
| 60,0 x 20,0 x 4,0 | 560 | 3.050 | 10 | 2 x ø914 mm | fuel transfer capability |
| 60,0 x 22,0 x 4,0 | 740 | 3.250 | 10 | 4 x ø609 mm | |
| 60,0 x 22,0 x 4,0 | 600 | 3.350 | 10 | 2 x ø914 mm | |
| 60,0 x 22,0 x 4,0 | 600 | 3.400 | 10 | 3 x ø914 mm | |
| 70,0 x 22,0 x 4,0 | 760 | 3.800 | 10 | 3 x ø914 mm | |
| 80,0 x 22,0 x 4,5 | 900 | 4.900 | 12 | 2 x ø914 mm | |
| 80,0 x 24,0 x 5,0 | 1.550 | 5.750 | 15 | 2 x ø1,200 mm |
Heavy Deck Cargo Barges
11,000 ton Semi Submersible Heavy Lift Barge
Well equipped and documented. L x W x Depth x Draft (m): 92.00 x 31.50 x 6.70 x 5.30. Deadweight: 11,000+ ton. Deck area: ~2,700 m2. Max submerging depth fwd: 2.0 m above deck, aft: 6.3 m above deck. For Charter only: Inquire
| Design loads (total loads) | |
| Deck loads | |
| Distributed | 20 t/m2 |
| Line loads | |
| Transverse bulkheads | 100 t/m |
| Transverse girders | 80 t/m |
| Transverse frames | 60 t/m |
| Longitudinal bulkheads | 110 t/m |
| Point loads | |
| Transverse bulkhead/Long bulkhead | 360 t |
| Transverse bulkhead/Sideshell | 450 t |
| Transverse frame/Long bulkhead | 360 t |
| Transverse frame/Sideshell | 500 t |
Please contact us for more details
17,000 ton DW Semi Submersible Heavy Lift / Launch Barge
Well equipped and documented. L x W x Depth x Draft (m): 124.0 x 31.5 x 6.7 x 5.3. Deadweight: 17,300+ ton. Deck area: ~3,600 m2. Max submerging depth (without add. floatation tanks) fwd: 8.0 m above deck, aft: 12.0 m above deck. For Charter only: Inquire
| General | |
| Class | DnV |
| Class Notation | 1A1 Barge for Deck Cargo (DK+) |
| Type | Heavy Lift and Semi Submersible Ocean |
| Going Heavy Deck Cargo Barges | |
| Year built | 2007-2009 |
| Dimensions | |
| Length, Overall | 124 m |
| Breadth, moulded | 31.5 m |
| Depth, moulded | 7.93 m |
| Draught, fully loaded | 6.076 m |
| Web Frame Spacing | 2 m |
| Long. Stiffener Spacing | 0.61 m |
| GT / NT | 8,762 / 2,629 |
| Tonnage | |
| Deadweight | 17.500 t |
| Deck space | 3,600 m2 |
| Deck strength | 31.5 t/ m2 |
| Launching capacity | up to 5,000 t jacket |
| Submerging Depths | |
| Submerging (without floatation tanks ) | 8 m above deck fwd |
| when grounding at stern | 12 m above deck aft |
| Submerging (free floating) with 10m | 8 m above deck fwd |
| high floatation tanks positioned aft on | 8 m above deck aft |
| main deck | |
| Floatation tanks for free floating | L x B x H: 12 m x 6.1 m x 10 m |
| Tank Capacities | |
| Ballast tanks | 26,770 m3 |
| Bilge tanks | 34 m3 |
| Sewage | 7.7 m3 |
| Fresh water | 15.2 m3 |
| Fuel (MDO) | 44.2 m3 |
| Lub. oil store | 0.6 m3 |
| Hydr. oil store | 1.3 m3 |
| Misc. oil store | 0.6 m3 |
| Ballast System | |
| Ballast Pumps (Diesel Driven) | 2 x 3,000 m3/hr |
| Ballast Pumps (Electric Driven) | 1 x 750 m3/hr |
| Service Pump (Electric Driven) | 1 x 250 m3/hr |
| Ballast Tanks | 24 in pontoon |
| Remote operated pumps, valves and sounding system from control room | |
| Ejector stripping system for all ballast tanks | |
| Power Supply | |
| Main Generators | 2 x 269 kVA, 440 V, 60 Hz |
| 1 x 145 kVA, 440 V, 60 Hz | |
| Work Generator | 1 x 22 kVA (1 x 30 Kw), 440 V, 60 Hz |
| Shore Power Connections | 230 V and 440 V |
| Anchor & Mooring Equipment | |
| Anchor Winch | 1 hydraulic driven |
| Anchor | 1 HPP anchor, 4,500 kg, |
| 355 m x Ø 58 mm K3 chain | |
| Work Winches | 2 x double drum on winch deck |
| Rope Capacities | 220 m x 40 mm (721.8 ft x 1.57 in) |
| 150 m x 60 mm (492.1 ft x 2.36 in) | |
| Capstans | 3 x 12 t pull |
| Bollards | Size 250/400 |
| Towing Equipment | |
| Towing Bridle | 1 bridle, 2 x 20 m legs, tow plate |
| and 9 m long fore runner | |
| Bridle Chain | 66 mm K3, MBL 330 t, Max bollard pull 150 t |
| Recovery System | A-frame and recovery winch with chain |
| on main deck forward | |
| Emergency Towing | Towing wire installed along port side |
| Length 134 m, MBL 330 t | |
| Towing brackets | 3 fwd 500 t MBL |
| Navigational lights & Safety equipment | |
| The barge is equipped with navigation lights according to flag state rules. The system is electrically powered and installed with solar panels. Safety equipment according to rules is always kept on board. | |
| Fuel oil tank | |
| A fuel oil storage tank with a capacity 38,9 m3 and a fuel oil day tank with capacity 5,2 m3 are located in the pump room. A screw pump with capacity 16,5 m3/hour is installed for fuel transfer. | |
| Accommodations | |
| Accommodations | 12 beds |
| Day Room | 1 |
| Meeting Room | 1 |
Please contact us for more details
Jack-up Barges
Jack-up Barge, dismountable
GL. Containerised. L x B x Depth (m): 30.0 x 22.0 x 2.90. Max. operating depth 25 meter. payload: 400 t. Inquire
| GENERAL | |
| Type | Dismountable, containerised |
| Class | GL, + 100 A5 K (RSA 20) self-elevating unit |
| DIMENSIONS | |
| Length | 30.5 meter |
| Beam | 22.0 meter |
| Depth | 2.9 meter |
| Leg length | 47.0 meter |
| Leg diameter | 1.4 meter |
| Moon pool | optional |
| JACKING SYSTEM | |
| Jacking speed | 15 m/hr |
| Jacking stroke | 1.5 m |
| Power pack | 280 kW, Diesel hydraulic |
| Pay load | 400 tons |
| OPERATION CONDITIONS | |
| Water depth | 25.0 m |
| Wave height | 2.0 m |
| Current | 2.0 m/s |
| Wind | 13.0 m/s |
Jack-up Barge, 300 ton pedestal crane
ABS. L x W x Depth (m): 46.0 x 30.5 x 4.50. Max. operating depth 30 meter. 300 ton pedestal crane. 732 dwt. Asia-Pacific. For Charter only. Inquire
| General | |
| Built | 2013 |
| Class | ABS, +A1 Construction and Maintenance |
| Service, Self-Elevating Unit | |
| SOLAS & ISM Category | MODU |
| Pontoon | |
| Length | 46,00 m |
| Beam | 30,50 m |
| Depth | 4,50 m |
| Draft | 2.4 m |
| Deadweight | 732 ton |
| Capacity fuel tank | 60 m³ |
| Capacity fresh water tank | 60 m³ |
| Jacking system | |
| Make | Gusto MSC |
| System | Positive engagement |
| Leg type | Tubular |
| Capacity (preload) | 1300 ton/leg |
| Average climbing speed | 10 m/hr |
| Standard leg length | 55.0 m |
| Max.operational water depth | 30.0 m |
| Accommodation | |
| Main deck: deck store, first aid room, tea room, deck toilet, tween deck, | |
| mess hall (24) c/w kitchenette, wash/change room, toilet. Upper deck: | |
| double cabin, three offices, meeting room, toilet, janitor. | |
| Crane | |
| Make | Favelle Favco |
| Type | PC 300 |
| Lifting capacity main hoist | 300 ton @ 18 meter |
| Lifting capacity aux. hoist | 32 ton |
| Mooring system | |
| Number of winches | 4 |
| Pulling force | 25 ton |
| Holding force | 60 ton |
| Wire diameter | 32 mm |
| Drum capacity | 500 m |
| Anchors | 4 x Delta Flipper; 3 ton |
| Power sources | |
| Main generators | 2 x 450 kVA |
| Auxiliary generator | 1 x 120 kVA |
| Pile testing facilities | |
| Max. pile diameter | 3000 mm |
| Max. conpression test | 1250 ton |
| Max. tension test | 900 ton |
| Foundation equipment | |
| A wide range of piling and drilling equipment can be made available for | |
| the installation of piles. | |
| Other | |
| Jack-up barge comes with its dedicated transport pontoon | |
Jack-up Barge, 250 ton pedestal crane
ABS. L x W x Depth (m): 43.0 x 30.0 x 4.20. Max. operating depth 50 meter. 250 ton pedestal crane. 575 dwt. ME. For Charter only. Inquire
| General | |
| Classification | ABS, + A1 Self-elevating unit |
| Pontoon | |
| Length oa | 43.0 m |
| Beam | 30.0 m |
| Depth | 4.20 m |
| Draft | 2.60 m |
| Tank Capacities | |
| Capacity fuel tank | 52 m³ |
| Capacity fresh water tank | 63 m³ |
| Jacking system | |
| Make | MSC |
| System | Positive engagement |
| Leg type | Square |
| Capacity (preload) | 1250 ton/leg |
| Average climbing speed | 8 m/hr |
| Standard leg length | 52.0 m |
| Maximum leg length | 69.0 m |
| Maximum operational water depth | 50.0 m |
| Accommodation | |
| First-aid unit | 20 ft |
| Office unit | 2 x 40 ft |
| Kitchen / canteen unit | 40 ft |
| Captain’s cabin / sanitary unit | 40 ft |
| Crane | |
| Make | Favelle Favco |
| Type | PC 250 |
| Lifting capacity main hoist | 250 ton @ 20 meter |
| Lifting capacity auxiliary hoist | 10 ton |
| Mooring system | |
| Number of winches | 6 |
| Pulling force | 17.5 ton |
| Holding force | 50 ton |
| Wire diameter | 32 mm |
| Drum capacity | 500 m |
| Anchors | 6 x Delta Flipper; 3 ton |
| Power sources | |
| Main generator | 3 x 260 kVA |
| Aux. generator | 110 kVA |
| Pile testing facilities | |
| Maximum pile diameter | 3000 mm |
| Maximum conpression test | 1250 ton |
| Maximum tension test | 900 ton |
| Foundation equipment | |
| A wide range of piling and drilling equipment can be made available for the installation of piles. | |
| • Impact hammers up to 500 kNm | |
| • Vibration hammers up to 115 kgm | |
| • Drill rigs up to 20 tonmeter | |
Jack-up Barge, 300 ton pedestal crane
2009, ABS. L x W x Depth (m): 55.0 x 32.0 x 5.00. 72 meter legs. 300 ton pedestal crane. Max variable load: 1250 tons. ME. Inquire
| GENERAL | |
| Built | 2009 |
| Class | ABS, + A1 self-elevating unit |
| DIMENSIONS | |
| Length | 55.00 meter |
| Breadth | 32.00 meter |
| Depth | 5.00 meter |
| Draft (max) | 3.60 meter |
| Deck area | 1,000 m2 |
| Leg length | 73.00 meter |
| Leg diameter | 3.00 meter |
| Spudcan surface | 24 m2 each (removable) |
| JACKING SYSTEM | |
| Type | Positive engagement, hydraulic |
| Capacity | 2,000 tons pre-load per leg |
| Jacking speed up (max) | 0.4 meter / minute (synchronous) |
| Jacking speed down (max) | 0.6 meter / minute (synchronous) |
| Maximum pay load | 1,250 tons |
| MOORING SYSTEM | |
| Winches | 4 x 30 tons line pull (500 meter) electric driven |
| Anchors | 4 x Delta Flipper, 5 tons |
| CRANE | |
| Make | Favelle Favco Cranes, Malaysia |
| Type | PC 300 Offshore Pedestal crane |
| Capacity | 300 tons at 22 meter radius |
| 52 tons at 62 meter radius | |
| Boom length | 60 – 90 meter |
| HELI DECK | |
| Size | 19.5 meter diameter |
| Capacity | Super Puma / 9.3 tons |
| JACKING CONDITIONS | |
| Wave height / period (max) | Hs. 1.5 m/5 seconds |
| Wind speed (max) | 8 m/s |
| SURVIVAL CONDITIONS | |
| Wave height / period (max) | 14.7 meter / 12.5 seconds (air gap 13.5 meter) |
| Wind speed (max) | 39.0 m/s |
| ACCOMMODATION | |
| Fixed accommodation | 64 POB |
| Optional | Up to 160 POB total |
Self-elevation platform, 1000 ton pedestal crane
ABS. L x B x Depth (m): 76.0 x 40.0 x 6.00. 90.0 meter legs. 1000 ton pedestal crane. Payload: 2000 tons. ME Inquire
| GENERAL | ||
| Class | ABS. + A1 Self Elevating Unit | |
| DIMENSIONS | ||
| Length | 76.0 m | |
| Breadth | 40.0 m | |
| Depth | 6.0 m | |
| Draft (max.) | 3. 9 m | |
| Deck area | 2,500 m2 | |
| JACKING SYSTEM | ||
| Hydraulic | Positive engagement | |
| Leg length | 90.0 m | |
| Capacity | 3,250 tons pre-load per leg | |
| Speed up / down | 0.4 / 0.5 m/min. (synchro) | |
| Maximum pay load | 2,000 tons | |
| MOORING SYSTEM | ||
| Winches | 4 x 55 t pull, 1,000 m wires | |
| Anchors | 4 x Delta Flipper, 6.5 t each | |
| CRANE | ||
| Type | Offshore Pedestal crane | |
| Capacity | 1,000 t at 22 m, 220 t at 76 m | |
| Boom length | 60 – 98 m | |
| HELI DECK | ||
| Size | 19.5 m diameter | |
| Capacity | Super Puma / 9.3 tons | |
| JACKING / SURVIVAL CONDITIONS | ||
| Wave height | 1.5 m | Airgap + 1.5 m |
| Wind speed | 10 m/s | 39 m/s |
| ACCOMMODATION | ||
| Standard | 64 pax | |
| Optional | Up to 250 pax total | |
| FEATURES | ||
| Plug on DP-2 thruster unit | ||
Crane Barges
1000 ton heavy lift Crane / Work / Piling Barge
2015 LR. 8-Point Mooring. L x W x Depth (m): 137 x 36 x 8.50. 73 pax accommodation. Ballastable. For Charter only: Inquire
| GENERAL | |||
| Type | Heavy Lift Crane / Work / Piling barge | ||
| Built | 2015 | ||
| Class | LR, Crane barge | ||
| DIMENSIONS | |||
| Length o.a. | 137.0 m | ||
| Beam mld | 36.0 m | ||
| Depth mld | 8.50 m | ||
| Draft maximum | 6.45 m | ||
| Deck Length | 120 m | ||
| Deck strength | 20 ton/m2 | ||
| Deadweight | 18,500 t | ||
| Displacement | 28,350 t | ||
| CRANE | |||
| Type | Liebherr BOS 35000-600 | ||
| Boom length | 78 m | 66 m | |
| Main hook | 600 t | 1000 t | |
| Aux. Hook | 50 t | ||
| Rules and Regulations | DNV, EN 13852-2 | ||
| Wind Speed max. | 25 m/s | ||
| MOORING | |||
| Winches | 8 x | ||
| Wires, Anchors | |||
| Fendering | Yokohama fendering PS and SB | ||
| MAIN TOWING BRIDLE | |||
| Stud link chain 2 x 25 m 76 mm U3 + triangle plate Bridle recovery A-frame with winch | |||
| ACCOMMODATION | |||
| Cabins | 73 berths | ||
| Mess room, galley, hospital, recreation room, office space, conference room, spacious bridge/control room | |||
| BALLAST SYSTEM / TANK CAPACITY | |||
| Ballast pump | 4 x 1,600 m3/hr | ||
| Ballast | 30,000 m3 | ||
| Fuel | 1,050 m3 | ||
| Fresh water | 855 m3 | ||
| Sewage | 1,975 m3 | ||
400 ton Crane / Piling Barge
ABS. L x W x Depth (m): 80.0 x 25 x 4.50. Daytime accommodation. Hydraulic hammers up to 500 kNm available . For Charter only: Inquire
| General | |
| Build: | 2013 |
| Class: | ABS, + A1 Barge |
| Main particulars | |
| Length: | 80.0 m |
| Beam: | 25.0 m |
| Moulded Depth: | 4.50 m |
| Machinery & Deck Equipment | |
| Generators: | 2 x Caterpillar C6.6 ACERT (147 KVA) |
| Mooring system: | 6 x 30 ton, 3 ton flipper delta’s |
| Accommodation | |
| 3 offices, 1 medical room, 1 mess room, | |
| 1 operator room, sanitary room/change room | |
| Crane | |
| Class: | ABS |
| Type: | PLM 6400 |
| Maximum lifting capacity | |
| Main hoist: | 2 x 200 ton |
| Aux. hoist: | 25 ton |
| Boom length: | 60 m (optional 70m) |
| Engine: | Caterpillar C32 |
| Available piling equipment | |
| IHC Hydrohammer S150 (150 kNm) to S-500 (500 kNm) | |
Self-propelled Accommodation / Work Barges
62 pax Self-propelled Accommodation Barge (2 sisters)
Autonomous operation, Coastal waters. Location: WAF. For Charter only. Inquire
| GENERAL | |
| Built | 2006 |
| Class | BV |
| Notation | I x Hull x Mach, Offshore service ship Accommodation, Costal area |
| DIMENSIONS | |
| Loa | 70 m |
| Width | 20 m |
| Depth | 4.30 m |
| Draft max. | 2.30 m |
| Clear deck area | Abt 300 m2 |
| CAPACITIES | |
| GT | 2,956 |
| NT | 886 |
| Deck Cargo | 150 mT |
| Deck Strength | 220 m2 @ 5 mT / m2 |
| Deck Strength fwd | 80 m2 @ 10 mT / m2 (option crawler crane) |
| Deadweight | 914 mT |
| Lightweight | 1,834 mT |
| MACHINERY | |
| Service speed / | Abt 6 knots at 6m3/day gasoil at sea. |
| Consumption | Abt 1.3 m3/day at anchor |
| Nominal power | 2 x 525 kW Azimuth propellers |
| Bow thruster | 270 kW |
| Generators | 4 x 571 kW, 1 x Em. Gen 175 kW |
| Electrical power | A.C. 3-ph, 400 V, 50 hz |
| Main Engines | 4 x Baudouin M26SR V-type, 571 kW each |
| Propellers | 2 x HRP Azimuth |
| Cargo Fuel pump | 65 m3 / hr |
| Cargo FW pump | 50 m3 / hr |
| TANK CAPACITIES | |
| Fuel (MGO) | 277 m3 |
| Ballast (FW) | 810 mT |
| Fresh water | 500 m3 |
| Fresh water production | max 22 tons/day |
| Dirty oil | 7 m3 |
| ACCOMMODATION | |
| Passengers | 112 |
| Crew | 14 |
| Catering staff (max) | 12 |
| Cabins | 8 x single, 7 x double, 20 x 4 bunks, 6 x 6 bunks = 41 bunks |
| Capacity | Total: 138 persons |
| DECK EQUIPMENT | |
| Anchors | 8 x 5 tons Flipper-Delta |
| Mooring gear | 8-point mooring: 8 X 1600 m, 38 mm ø, 90 tons, 1st layer |
| Bow ramp | Open – manual operated N/A |
| Deck Crane | 9.3 tons outreach 13.3 m (stb side) |
| Rescue boats | 2 x 10 knots, 6 persons each |
| Boat landings | 2 x Surfer landings |
Accommodation / Work Barges
300 pax Accommodation Barge (2 sisters)
Autonomous / Unrestricted operation. 8-point mooring. S-92 Helideck, 68 ton, 70m elevation, 12m reach service crane. Location: WAF. For Charter only. Inquire
| GENERAL | |||
| Built | 2007 | ||
| Class | Bureau Veritas | ||
| Notation | I x HULL x MACH Offshore service ship/ Accommodation/ Unrestricted navigation | ||
| DIMENSIONS | |||
| Loa | 100 m | ||
| Width | 30.50 m | ||
| Depth | 7.62 m | ||
| Draft max | 5.50 m | ||
| Clear deck space | 1,600 m2 | ||
| CAPACITY | |||
| GT | 10,413 | ||
| NT | 3,124 | ||
| Deck cargo | 1,197 mT | ||
| Deck strength | 15 T/m2 | ||
| Deadweight | 11,120 mT | ||
| Lightweight | 5,655 mT | ||
| PUMP CAPACITIES | |||
| Ballast pump | 2 x 500 @ 30 m head | ||
| Fire service pump | 1 x 160 m3 /hr @ 100 m head | ||
| FW pressure set | 3 x 30 m3 /hr @ 43 m head | ||
| SW pressure set | 3 x 30 m3 /hr @ 43 m head | ||
| Main fire monitor pump | 2 x 180 m3 /hr @ 100 m head | ||
| Gen. service fire pump | 2 x 130 m3 /hr @ 80 m head | ||
| FO transfer pump | 2 x 45 m3 /hr @ 45 m head | ||
| Emerg. Fire pump | 1 x 60 m3 /hr @ 65 m head | ||
| Foam monitor | 2 units | ||
| Fire hose / station | 8 x 40 mm D=15m hoses w/nozzle, 23 x 65 mm D=15m hoses w/nozzle | ||
| Desalination plant | 2 x 50 m3/day Reverse Osmosis | ||
| TANK CAPACITIES | |||
| Fuel (MGO) | 1715 m3 | ||
| Fresh water | 2,700 m3 | ||
| Ballast | 9,000 m3 | ||
| Ballast pumps | 2 x 500 m3 / h @ 30 m head | ||
| Anti heave tanks | Fitted | ||
| ACCOMMODATION | |||
| Fully air conditioned, comply with ILO 92 All cabins with en-suite toilet | |||
| D deck | 4 x 1 Man cabin (suite) | 192 | |
| C deck | 48 x 4 men cabin | 4 | |
| B deck | 8 x 1 men cabin | 8 | |
| 12 x 2 men cabin | 24 | ||
| 18 x 4 men cabin | 72 | ||
| Total | 300 | ||
| FIRE FIGHTING / SAFETY EQUIPMENT | |||
| Portable fire extinguisher | 80 x 6 kg dry powder; | ||
| 3 x 50 kg dry powder; 2 x 9 CO2 ; | |||
| 2 x 10 ltrs liquid chemical | |||
| FiFi-1 | 2 x 1450 m3 / h | ||
| Fire Alarm Central | 1 central panel w/42 manual points | ||
| CO2 System | Eng. room, winch, power pack rooms & paint locker room | ||
| Water mist system | Diesel Generators | ||
| Life rafts rescue boats | 26 x 25 men liferafts / 1 x 6 persons rigid rescue boat c/w davit | ||
| Stretcher | 2 units, capable of helicopter evacuation | ||
| NAVIGATION / COMMUNICATION | |||
| GMDSS / 1 x Furuno 8800S VHF Semi Duplex | |||
| 1 x Furuno FS-2570 MF/HF Radio / 1 x Furuno DMC 5 Watch Receivers | |||
| 2 x Icom VX-800D Walkie Talkies / 1 x Furuno NX-700(B) Navtex | |||
| 1 x Nera Worldphone Mini-M / 1 x GP-150 GPS | |||
| 1 x RM Young 05103-58 Anemometer / 1 x Furuno VX2 1934C Navnet | |||
| 1 x Furuno FE 700 Echo Sounder 200m working depth / 1 x Satellite compass 5c-502 | |||
| FACILITIES | |||
| Main deck | 1 office; Hospital 3-beds w/lockers & toilets; Paramedic room; video room w/sofa & armchair | ||
| Office deck | 4 offices; Crew recreation room; radio/control room; Internet room w/corner table & chairs; waiting room w/TV, tables & chairs; video room 1w/sofa & armchair on main deck gymnasium all equiped | ||
| B deck | 1 office; Messroom up to 150 pers. w/tables & chairs; galley all equiped; TV/video room w/1 smoker & 1 non-smoker area; conference room w/chairs/tables & whiteboard. | ||
| Sewage treatment | 2 x 150 men capacity | ||
| Helideck | Dia: 23 m, 9.3 mT loading / strength suitable for Sikorsky S92 helicopter | ||
| DECK EQUIPMENT | |||
| Mooring system | 8 x point mooring winches 70 mT@7m/min pull; 2 x tugger winches 10 T each Fwd & Aft | ||
| Anchors / wires | 8 x 7.0 T each (1 spare) Flipper Delta type / L=1500m, D=46mm | ||
| Main diesel generators | 5 x Caterpillar 3412, 500 kW each, 1500 rpm AC, 3-phase, 415/230 V, 50Hz | ||
| Emergency generator | 1 x Caterpillar 3056 DIT 86 kW, 415 V/3 Ph / 60Hz | ||
| Air compressors | 2 x 80 m3/m @ 10 bar | ||
| Main crane | 1 x API 2C rated crane 68.0 T @ 12m radius x 360° slewing, 70 m elevation | ||
| Provision crane | 3.0 T @ 10m, 5.0 T @ 5m, hosting height 32 m | ||
| Workshop | 1 complete w/lathe, 200mm Ø grinder, electric jig saw, oxy/acetylene cutting torch w/regulator & hoses & bench drill | ||
360 pax Accommodation Barge
Unrestricted operation. ABS/IRS class. SPS compliant. 8-point mooring. Helideck, 350 ton lattice boom crane. Location: Gulf region. For Charter only. Inquire
- Hook-up and commissioning
- Subsea Pipeline and Construction Support
- Deep diving support
- Post trenching
- Shallow water & deep water applications
| GENERAL | |
| Built Hull | 1997 / 2008 (Modified, Accommodation and Machinery) |
| Class | ABS / IRS / IR |
| Notation | Accommodation Crane Barge |
| Safety Compliance | SPS Code Complied |
| PRINCIPAL DIMENSIONS | |
| Length oa | 86.00 m |
| Beam | 27.50 m |
| Depth | 5.50 m |
| Draft | 3.985 m |
| Clear Deck | 1,200 m2 approx. |
| Deck Strength | 10 t/m2 |
| Ballast | Up to 1,600 mt |
| Freshwater Capacity | Up to 1,600 mt |
| Fuel Oil Capacity | Up to 837 mt |
| Lube Oil Capacity | Up to 1,000 l |
| MACHINERY | |
| Generators | 4 x 400 kW Cummins |
| Emergency Generator | 1 x 150 kW Kirloskar |
| Ballast Pump | 2 x 80 m3, 60 m Head |
| Bilge Pump | 1 x 80 m3, 60 m Head |
| Fire Pump | 2 x 80 m3, 60 m Head |
| Emergency Fire Pump | 1 x 80 m3, 60 m Head |
| Fuel Oil Pump | 1 x 36 m3, 40 m Head |
| Fuel Oil Purifier | 1 x 1 m3 /h |
| Sewage Plant | 1 x 15 m3 /h |
| Fresh water Pump | 1 x 65 m3 30 m Head |
| Air Conditioning | 4 x 80 TR Make Carrier |
| DECK EQUIPMENT | |
| Main Crane | Manitowoc, 4600 Series |
| Lattice Boom, Mounted Crawler Crane | |
| Operating Radius 360 Degrees | |
| Mooring Winch | 8-Point Mooring System (4 x 2 Drums) |
| 03 Mechanical (Amhoist) | |
| 01 Hydraulic (Detroit) | |
| Winch Hydraulic | 4 x Double Drum |
| Winch Mechanical | Double Drum |
| Anchor Wire | 8 x 38mm, 1000-1100 m |
| Anchors | 7 x 6 tons Delta Flipper, 1 x 7 tons Stockless |
| Helideck | 23.5 x 23.5 m ( 11,9 tons) |
| Suitable for BELL 212/412 & Sikorsky S92. | |
| Designed as per CAP 437 | |
| ACCOMMODATION | |
| ABS & IRS Compliance. Fully Air Conditioned, Back-up AC Plant, European Standard | |
| Cabins | 13 x 1- or 2-berth |
| 62 x 4-berth | |
| 24 x 4- or 6-berth (acc. Modules) | |
| Total max complement | 370 |
| Offices | 3 |
| Mess Room | Seating Arrangement for 150 Persons |
| Hospital | 1 x Fully Equipped Hospital with 4 Bed |
| Galley | 1 x Fully equipped with walk in Chillers & Freezers |
| LIFE SAVING & SAFETY EQUIPMENT | |
| As per SOLAS Class Requirement | |
| Life Rafts | 40 x 25 men capacity with SOLAS Pack A |
| Rescue Boat | 1 x |
| Mike Radar Transponder | 2 x |
| NAVIGATION AND COMMUNICATION EQUIPMENT | |
| Radio Telephone | 2 x VHF (Sailor) I DSC |
| Radio Telephone | 1 x MF/HF (Telex Make Sailor) |
| SART | 1 x McMurdo S4 GMDSS 9 GHz |
| VHF | 4 x Two-Way hand-held |
| DGPS | 2 x |
| Aviation Portable Radio | 1 x lnmarsat-C |
| lnmarsat-M | 1 x with Fax & Phone |
| Echo Sounder | Furuno FCV-620 |
| Navtex | 1 x |
| Anemometer | 1 x |
| EPIRB | 2 x McMurdo Smartfind ES |
| AIS | 1 x Samyung Sl-30 Universal AIS |
| SSB | 1 x Furuno FS 1570 MF/HF |
| Helicopter Communications | 1 x ICOM VHF Transceiver, |
| 2 x ICOM A 24 aviation portable radio beacon | |
Accommodation Barges
600 pax Floatel / Accommodation Barge
600 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic & tropical conditions. location: Eastern Med. Inquire
| GENERAL | |
| Built | 2011 |
| Classification | BV, I +HULL, • MACH, special service, Accommodation Barge-no propulsion Sheltered area/ (offshore sheltered enclosures) Hsig. max 0.5 mtr |
| DIMENSIONS | |
| Length overall: | 135.00 m |
| Length dwl: | 129.60 m |
| Breadth over all: | 14.20 m |
| Breadth (moulded): | 14.15 m |
| Depth: | 4.10 m |
| Deadweight: | 3,185 mt |
| Draught Max (summer): | 3.50 m |
| GT/NT : | 6,030/1,810 |
| CAPACITIES | |
| Fuel oil bunkers : | 111.0 m3 |
| Fuel set and day tanks: | 29.9 m3 |
| Bilge Water tanks: | 20.0 m3 |
| Potable water: | 640.0 m3 |
| Cargo Deck strength: | 5.0 t/ m2 |
| Water Ballast: | 70.0 m3 |
| Treated Water tanks: | 1,454.0 m3 |
| Sludge: | 5.0 m3 |
| ACCOMMODATION | |
| Complement: | 600 persons |
| Cabins: | 2 x 2-berth cabins |
| 151 x 4-berth cabins | |
| Other facilities: hospital, Citadel function with BA plugs on aft deck, day- /mess room and wheelhouse, Offices, Fitness, Laundry, Incinerator 850 kW, Hospital, Bar | |
| HEAT/COLD SYSTEM | |
| HVAC system designed for: | Summer: outside +40C°/ 70% RH / inside +27C°/ 50% RH |
| Winter: outside -36C° /inside +18C° | |
| MACHINERY / PERFORMANCE | |
| Diesel Generators | 4 x Scania DI 16 55M, 426 kW each, Voltage 3ph 550VAC/50Hz |
| Emergency Generator | SISU 49 DTG, 74 kW, Voltage 3ph 79VAC/50Hz |
| DELIVERY RATES | |
| Fuel oil: | 2 x 6 m3/ hr |
| Sewage/Treated Water: | 2 x Victor S108(210) G31BB9(160)+F 135m3/hr/ 4” TODO |
| Freshwater: | 4 x CAT 3541 10,2 m3/hr |
| DECK EQUIPMENT | |
| Aft Deck | |
| Anchor/mooring winch: | Menarom PEC AMV-DRC-E32C |
| Deck crane | 2 x HSMarine 10 ton@10 m |
| Reefer Container Sockets | 2 x |
| Stern Roll | Optional |
| Fore Deck | |
| Anchor/mooring winch | Van Wijk B.V. Smit bracket |
| SAFETY EQUIPMENT | |
| MOB boat | CAP – 360 with outboard engine Mercury 15M |
| Life jackets | 658 pc |
| COMMUNICATIONS | |
| VHF | 2 x Marine IC-M411 |
| GMDSS | 3 x Tron TR20 |
300 pax Floatel / Accommodation Barge (3 sisters)
300 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic & tropical conditions. location: Eastern Med. Inquire
| GENERAL | |
| Built 2009 | |
| Classification | BV – II +HULL • MACH Special service/ accommodation barge- no propulsion, |
| Sheltered area Offshore Sheltered Enclosures, Hsig. Max 0.5 mtr | |
| DIMENSIONS | |
| Length overall | 116.00 m |
| Beam | 11.40 m |
| Depth | 4.50 m |
| Summer load draft | 3.0 m |
| Light ship draft | 1.62 m |
| GT / NT | 3,590 / 1,440 |
| CAPACITIES | |
| Fresh water | 300 m3 |
| Sewage | 900 m3 |
| Fuel Oil | 100 m3 |
| Waste storage skips | 4 |
| ACCOMMODATION | |
| Complement | 300 persons |
| Cabins | 75 x 4-berth cabins, each cabin have its dedicated wet cell |
| Other facilities: | Galley and Cold/drystore capacity Messroom, Dayrooms, Fitness room |
| Internet cafe, Hospital, Changeroom, Office, Reception and Laundry | |
| MACHINERY / PERFORMANCE | |
| Main diesel | 3 x Scania D11655M, 426 kW |
| Emergency Generator | SISU 420SRG 75 kW |
| DECK EQUIPMENT | |
| Deck crane | AFB170/10, SWL 10 ton / 10 m, Double pull use, Max radius 10m, min radius 1.72 m |
| Anchors | Klip Anchors – 1000 kg – 3 pcs |
| Smit bracket | |
| ENDURANCE | |
| 12 days, based on 200 ltr sewage water production per man per day. | |
| FRESH WATERMAKERS | |
| 5 units x 12,5 ton/day @ 5C° (outboard) Note: Ability to use depends on the sea-water quality at location. | |
| HEAT / COLD SYSTEM | |
| HVAC system designed for: | Summer: outside +40C°/ 70% RH / inside +27C°/ 50% RH |
| Winter: outside -36C° / inside +18C° | |
| ENVIRONMENTAL | |
| Zero dumping provisions | |
| Sewage plant Outlet criteria in accordance with RosR. suitable for 300 pax. | |
| Incinerator TeaTech 500 | |
290 pax Floatel / Accommodation Barge (2 sisters)
290 man Accommodation Barge. Autonomous operation, Sheltered waters. Suitable for arctic operations. location: Marmara Sea. For sale or Charter. Inquire
| Type | Accommodation barge – 290 Man |
| Year Built | 2009 – Refit |
| Class/Classification | RMRS Hostel |
| GRT | 3,500 |
| Length Overall | 76.16 meters |
| Breadth | 17.76 meters |
| Depth | 4.57 meters |
| Max Draft | 3.00 meters (approx.) |
| Deadweight | 1341 Metric Tons (approx.) |
| Equipment: | Two (2) x 800 kW CAT generators |
| Two (2) x R.O. Watermakers | |
| One (1) x Atlas Incinerator | |
| One (1) x KenBay Trash Compactor, | |
| One (1) x 5 Ton Tech Hydraulic Crane, | |
| One (1) x Headhunter Waste Treatment System | |
| Tank Capacities | Fresh Water: 170m3 |
| Fuel Oil: 80m3 | |
| Sewage Waste: 580m3 | |
| Waste Oil: 2.2m3 | |
| Main Deck: | Galley, Dry Food Storage, Three (3) Walk-In |
| Freezers, 150 Person Dining Area, Control | |
| Room, Infirmary, Laundry Facility |
Whether being manned or unmanned, and whether being self-propelled or not, a barge is a versatile unit and can be made specific for supporting marine works of any kind. The units listed here are from plane Deck Cargo – and Hopper Barges and the more complex Pipe-, Crane- or Cable laying barges as well as used for accommodation purposes.
